Sandbox 10

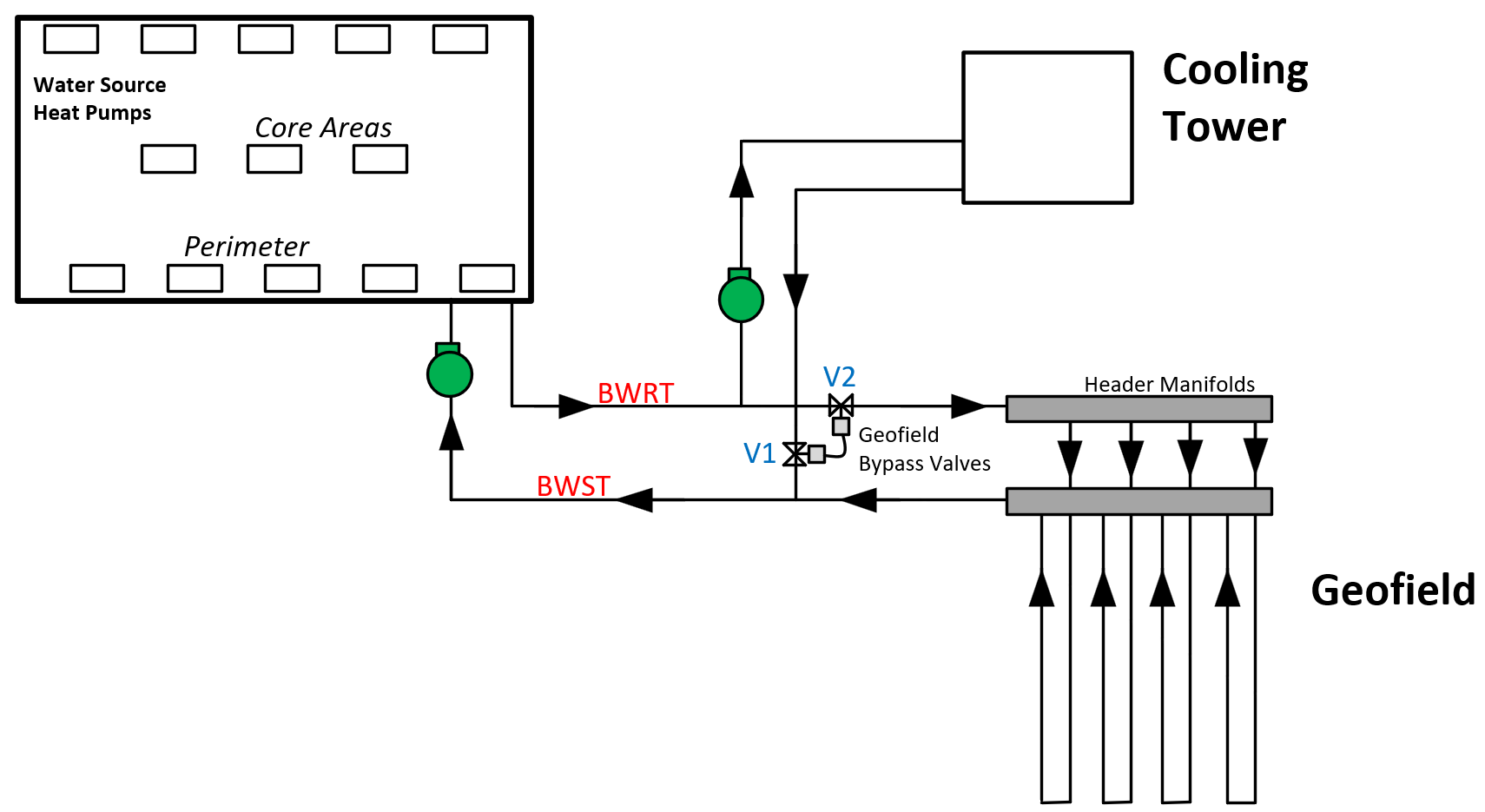

Digital Twin of a commercial building with a closed loop geothermal system. Heating and Cooling loads provided minute-by-minute by Sandbox 11.

WSHP Digital Twin
Digital Twin (WSHP)
Updated: 2025-09-11 23:03:46
OA Temp: 65.5 °F
Humidity: 66 %
Wind: 1.34 mph
Solar: 0 W/m²
Bldg Heating Load: 0 MBH
Bldg Cooling Load: 0 Tons

BWST (HP EWT): 67.03 °F
BWRT (HP LWT): 67.03 °F
BLT (Loop Avg): 67.03 °F
Geofield Temp: 67 °F
Valve Status: Closed
Cooling Tower: Off

Heating Units: 0%
Cooling Units: 0%
Recirculating Units: 100%

Heating ISO kW/unit: 3.33 kW
Cooling ISO kW/unit: 2.37 kW
Total Heating kW: 0 kW
Total Cooling kW: 0 kW
Total ISO kW: 0 kW
Live Geofield Valve Control Setpoints

Valve Opens (Heating):
BWRT < 50 °F

Valve Closes (Recirculate):
BWRT 55–80 °F

Valve Opens (Cooling):
BWRT > 85 °F

Cooling Tower ON:
BWRT > 90 °F

Cooling Tower OFF:
BWRT < 85 °F

* Setpoints pushed live from EnergyLab Hub.
